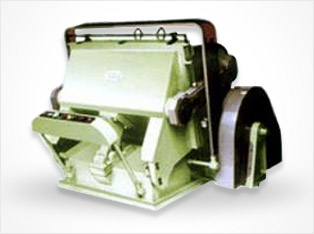

The Die Cutting Machines. A heavyweight in every right, this hand fed marvel is designed for die cutting, creasing, embossing and half-cutting a variety of materials. Highly standardized and ergonomically manufactured, it can deliver clean jobs on paper, cardboard, corrugated board, leather, plastic and PVC materials. The platen is of high tensile cast iron which can take varied levels of pressure without any strain or defamation. The main driving shaft is equipped with two sets of double helical self lubricated imported polyamide pinions maintained in an all bath. The automatic die cutting machine or platen die cutting machine is also filled with two pairs of protected reduction gears.
These automatic platen die cutting machine are built to lost with superior quality paint and powder coated fittings coupled with silent trouble free operation, making the Die Cutting Machine the most reliable, simple to use and maintenance free machine today.
Control Box
Operation and control oriented, the main electric panel is made up of internationally standardised components of well known brand leaders, enabling precise operation & control.
Salient Features
- Totally standardized interchangeable parts.
- EN-8/9 Alloy steel shafts and ground pins.
- Phosphor Bronze bushes.
- SKF/NBC bearings.
- Siemens/L&T/T.C. components on control panel.
- Checknuts lock system on main flywheel.
- Two eccentric impression adjustment bushes.
- Uniform platen pressure.
- Robust, good looking, silent and efficient.
Standard Accessories
accessories on request
VARIABLE IMPRESSION PRESSURE
The presence of two eccentric bushes with visible calibration makes it simple and easy to make quick, minute adjustments to impression pressure. Being independent for each, perfect platen pressure can be achieved by a combination of setting as desired.
ADJUSTABLE ELECTROMAGNETIC CLUTCH & BRAKE SYSTEM
Fine tuned and adjustable at the micron level, the clutch and brake are in perfect electromagnetic synchronization, thus ensuring no overlap between the driving and braking mechanism. This saves considerable energy loss and the conspicuous obsence of all in the system eliminates risk of all reaching the friction surfaces.
| Size Inside Chase | 51 x 66 cm. 20 x 26 In. | 51 x 76 cm. 20 x 30 In. |
56 x 82 cm. 22 x 32 cm. |
64 x 94 25 x 37 in. |
81 x 107 cm. 32 x 42 In. |
91 x 130 cm. 36 x 51 In. |
107 x 158 cm. 42 x 62 In. |
| Platen Size | 56 x 71 cm. 22 x 28 In. |
56 x 81 cm. 22 x 32 In. |
61 x 86 cm. 24 x 34 In. |
71 x 101 cm. 28 x 40 In. |
86 x 114 cm. 35 x 45 in. |
99 x 137 cm. 39 x 54 in. |
114 x 165 cm. 45 x 65 In. |
| H. P. Reqd. | 3 H. P. | 3 H. P. | 3 H. P. | 5 H. P. | 7.5 H. P. | 10 H. P. | 10 H. P. |
| Imp. per. hr. | 1800 | 1800 | 1700 | 1500 | 1300 | 1100 | 1000 |
| Wt. apprx. | 2.6 Ton | 2.8 Ton | 3.4 Ton | 4 Ton | 5.4 Ton | 6.5 Ton | 9.5 Ton |
| Area Reqd. | 188 x 150 x 157 cm. 74 x 59 x 62 In. |
188 x 155 x 157 cm. 74 x 61 x 62 In. |
188 x 167 x 147 cm 74 x 66 x 58 In. |
198 x 180 x 152 cm 78 x 71 x 60 In. |
223 x 198 x 167 cm. 88 x 78 x 66 In. |
228 x 208 x 180 cm. 90 x 82 x 71 In. |
241 x 241 x 203 cm. 95 x 95 x 80 In. |
